Agricultural double row angular contact bearing
Print



             Agricultural double row
       angular contact bearing


              As a common bearing type, angular contact bearings will be
           widely used in various agricultural machinery. Now the double
           row angular contact bearing specifications are complete, the
           product is more mature, but does not mean that this can not be
           optimized. In fact, many agricultural machinery manufacturers
           are not very familiar with bearings, the use of bearings is not
           very clear, blind selection will lead to development and after
           sales costs increase, not all double row angular contact bearings
           can be used in agricultural machinery. CSELITE provides an
           optimized solution for double row angular contact bearings,
           which can be customized according to the actual conditions of
           the machine.




                                                                                         Why different

                                                 We never blindly recommend products to customers, we need to know the actual conditions of use of products,
                                        such as working environment, possible maximum load, maintenance requirements, etc. According to these
                                        requirements to provide customers with a reasonable solution, from design and development, production and
                                        manufacturing to the later stage of the relevant testing, we customize a set of each product belongs to its own
                                        process. We believe that only with actual needs and stringent requirements can we provide the right products.














    High strength provides reliable guarantee

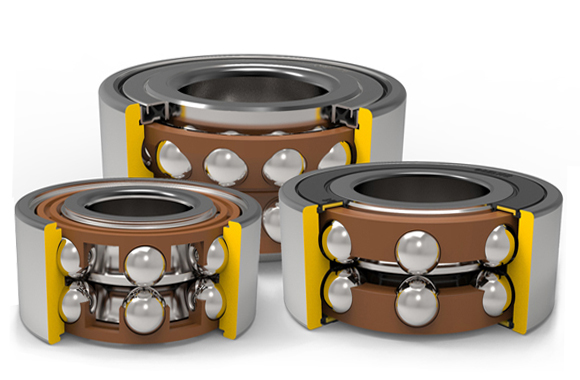

     The internal independent double row angular contact bearings
    are designed to withstand the pressure parallel to the rake and the
    unsteady transverse overturning moment. Even in the worst
    working conditions, they can ensure the stable operation of the
    machine. After rigorous laboratory testing, the internal structure
    of the bearings is still intact.










Sealing system is the key

              Low temperatures and snowfall in winter and high temperature and
           humidity in summer are serious challenges to sealing systems. Low

temperature will make the rubber of the seal rapidly aging and lose
           its elasticity, and high temperature and humidity will make the seal
           in dust and mud for a long time, which will make the seal easier to
           fail, so the stability of the seal system is very important to the
           bearing life.

CSELITE double row angular contact bearings are sealed with
           R-type and box-type sealing, enabling the sealing system to
           withstand the worst natural environment erosion.









                                                  Technical Parameter






Designation Type D d B OEM No.
mm mm mm
AB-3205A2RS-01 Fig.2 52 25 20.6 LEMKEN 3198708    INA 3205-BD-XL-2HRS-TVH
PEER 5204-2RS
AB-3206A2RS-01 Fig.2 62 30 23.8 HORSCH 00240161    VADERSTAD 405814
FAG 3206-BD-XL-2HRS-TVH
AB-3307A-01 Fig.2 80 35 34.9 HORSCH 00240189 / 00240213
AMAZONE CC014
INA/FAG 3307-BD-XL-2HRS-TVH
AB-4307A2RS-01 Fig.6 72 35 33
